CEM Digital Clamp Meter
CEM Digital Clamp Meter
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Unit price
/
per

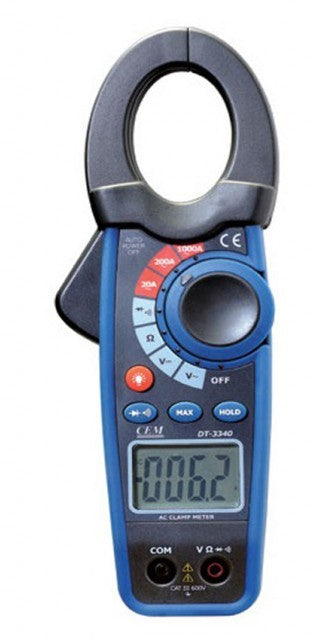

Model DT-3341
1000A AC, AC/DC True RMS Clamp Meters
DT-3340 Series Professional True RMS Clamp Meters provide accurate AC, AC/DC Current and Voltage readings regardless of waveforms. These meters can be used in most industrial and commercial applications where non-linear loads distort the Current or Voltage waveform.
Electronic overload protection
Data Hold function
DCA Zero function
Low battery indication
Auto Power Off
| Specifications | ||||
| Function | Max. Range | Basic Accuracy | Max. Resolution | DT-3341 |
| Current DC | 1000A | ±(2.5%+5d) | 10mA | * |
| Current AC | 1000A | ±(3.0%+4d) | 10mA | |
| Voltage DC | 600V | ±(0.8%+2d) | 0.1mV | * |
| Voltage AC | 600V | ±(1.0%+4d) | 0.1mV | * |
| Resistance | 40M? | ±(1.0%+4d) | 0.1? | * |
| Capacitance | 40mF | ±(3.0%+5d) | 0.01nF | 100µF |
| Frequency | 10MHz | ±(1.2%+3d) | 0.01MHz | 100kHz |
| Duty Cycle | 99.90% | ±(1.2%+3d) | 0.10% | * |
| Temperature | 1000ºC/ 1832ºF | ±(3.0%+5d) | 1ºC/ºF | * |
