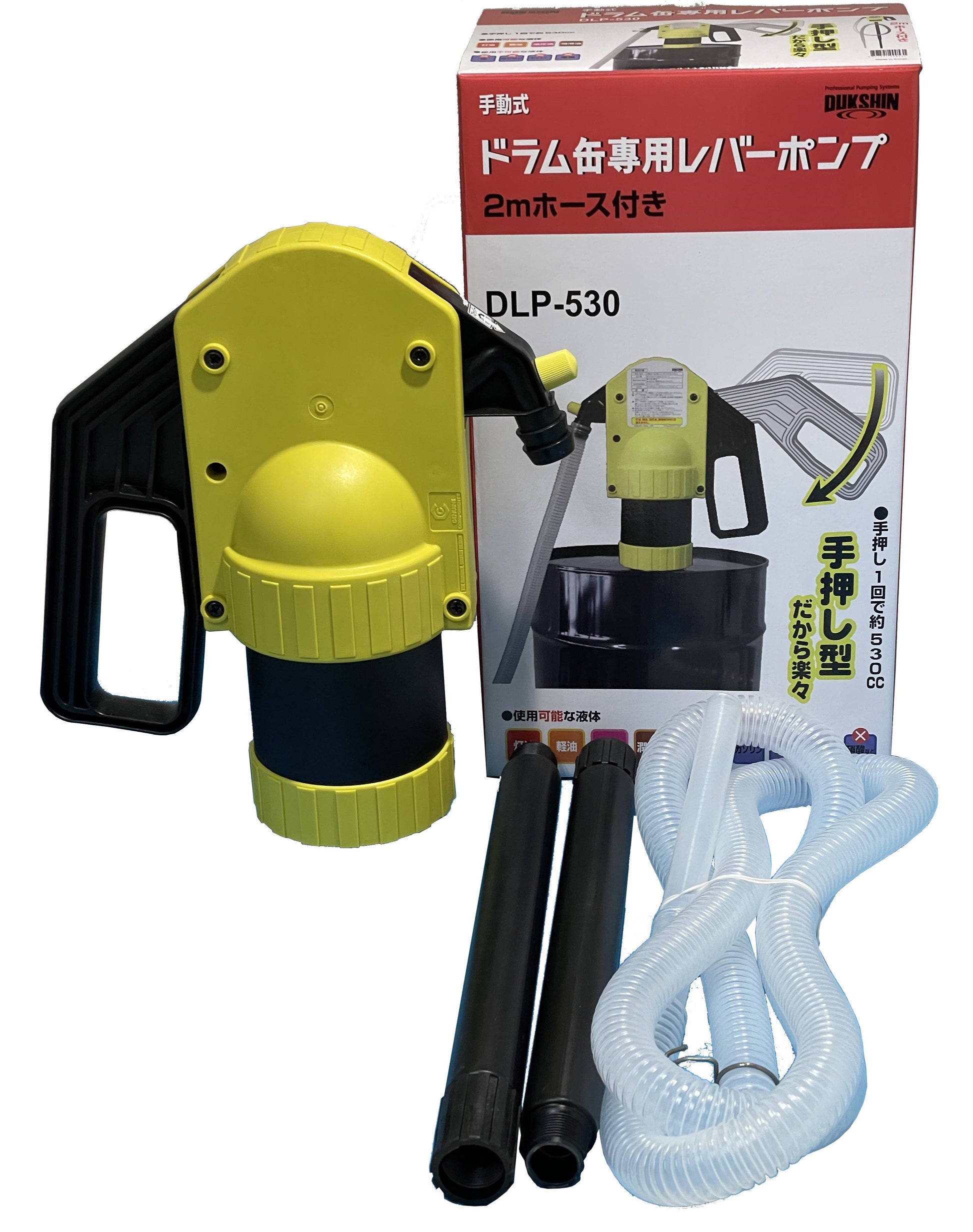

DUKSHIN Lever Drum Pum

DLP-530 Lever Pump

Applications & Features

* Suction type : manual up and down piston lever type / Heavy duty for thick oil
* Kerosene oil,Diesel Fuel, Diesel oil, Bio Diesel, Hydraulic oil, Lubricant, etc.
* A unique toggle mechanism is incorporated in the handle linkage to correct piston shaft geometry to creat smooth operation and also prevent premature piston shaft seal failure.
* 2" drum bung adaptor With lock Nut
* DO NOT use this pump for transfering the following liquids :
ACETON, BENZEN, CREOSOL, ETHYL, PHENOL, METHYL ETHYLE, Gasoline, Concentrated acids(Sulfuric acid, Nitric acid, Hydrochloric acid)

Specifications

* Three-piece telescopic suction pipe adjustable from 350mm to 980mm to fit most containers.
* Discharge Tube Length : About 2 meters
* Discharge Tube Inner Dia. : 20 mm
* Delivery Volume : About 530ml per stroke
* Main Material : ABS, Polypropylene, Acetal
