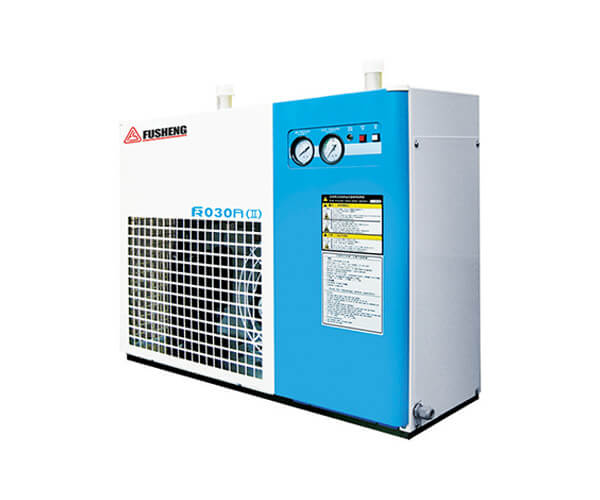

FUSHENG Air-Cooled Refrigerant Dryer FR Series
FUSHENG Air-Cooled Refrigerant Dryer FR Series
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Unit price
/
per
If you need to reduce or remove moisture from compressed air, a refrigerated dryer is the best choice. After passing through a refrigerated dryer, the moisture in the compressed air is cooled and condensed, and the dry air is discharged. The pressure dew point temperature can reach 2-10°C.
Fusheng's FR series refrigerated dryers are categorized as air-cooled or water-cooled depending on the cooling method, and further categorized as high-temperature or low-temperature depending on the inlet air temperature. We offer a variety of options to meet customer needs.
| Model | FR005AP | FR010AP | FR020AP | FR030AP | FR050AP |
| Capacity (m3/min.) | 0.6 | 1.2 | 2.4 | 4.4 | 7 |
| Air Inlet Temp. | 55'C | ||||
| Ambient Temp. | 32'C | ||||
| Dew Point | 2-10'C | ||||
| Operating Pressure | 7kg/cm2G | ||||
| Refrigerant | R134a | R407C | R410A | ||
| Power Consumption (Kw) | 0.4/0.5 | 0.8/0.9 | 1.6/1.7 | ||
| Power Supply | Single Phase 220V 60HZ | 3 Phase 220V 60HZ | |||
| Air Piping Size (NPT) | 1/2" | 3/4" | 1" | 1.1/2" | |
| Net Weight (kg) | 22 | 35 | 42 | 70 | 88 |
