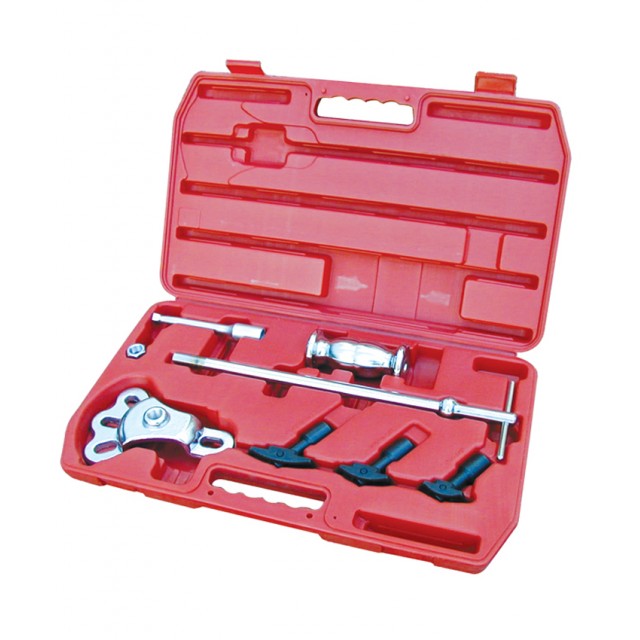

Lota Rear Axle Puller Set

108-0789

The Lota Rear Axle Puller Set is a heavy-duty tool kit designed for removing flange-type rear axles and axle bearings. It uses a slide hammer mechanism to break loose stubborn or press-fitted axles and bearings from the housing without causing damage.

Set Contents & Functions:

🔹 (1) Slide Screw (5/8"-18T x 22-1/2") – Connects components and allows for controlled force application.
🔹 (1) Axle Yoke – Attaches to the axle flange for secure pulling.
🔹 (3) Bearing Adapters – Fits various axle bearing sizes for versatility.
🔹 (1) 3-3/4 lbs. Slide Hammer – Provides impact force to remove stuck axles and bearings.
🔹 (1) 5/8" Lock Nut – Secures components in place during operation.
🔹 (1) Bearing Hook – Designed for pulling out axle bearings efficiently.

How to Use the Lota Rear Axle Puller Set:

For Flange-Type Rear Axles:

1. Lift & Secure the Vehicle – Use a jack and jack stands.
2. Remove the Wheels & Brake Components – Take off the wheel, brake drum/rotor, and any retaining clips.
3. Attach the Axle Yoke – Align the yoke with the axle flange bolt holes and secure it.
4. Connect the Slide Hammer – Attach the slide hammer to the yoke using the slide screw.
5. Pull the Axle Out – Repeatedly slide the hammer outward until the axle comes free.

For Axle Bearings:

1. Attach the Bearing Adapter or Hook – Depending on the bearing type, secure the appropriate adapter.
2. Connect the Slide Hammer – Thread the hammer onto the bearing adapter.
3. Remove the Bearing – Use slide hammer strokes to gradually extract the bearing from the housing.
