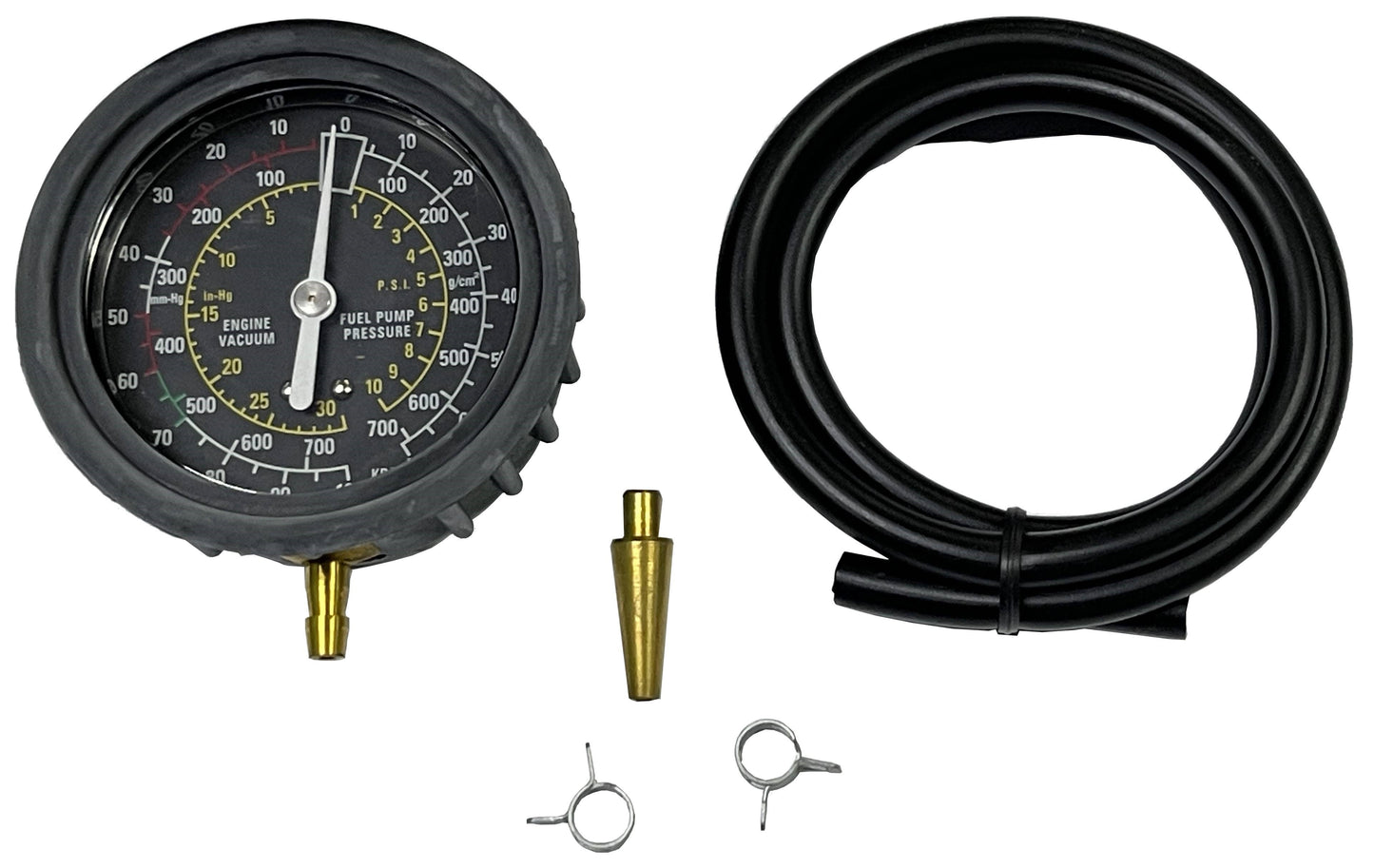

LOTA Vacuum/Fuel Pressure Tester

789-0085B

1. Connect the vacuum gauge hose
Attach the hose as close to the intake manifold as possible.
On V-type engines with two manifolds, perform the test separately on each side.

2. Start the engine
Allow it to reach normal operating temperature.

3. Adjust the throttle butterfly valve
Open or close slightly until the engine runs evenly.

4. Set the carburetor idle adjustment
Adjust the idle screw so the engine idles smoothly.

5. Observe the vacuum gauge reading
A steady pointer reading between 18 and 21 inHg (inches of mercury) at idle indicates the engine is in good condition

If the needle is unsteady, fluctuating, or below normal, it may point to issues like ignition problems, vacuum leaks, valve troubles, or worn piston rings.

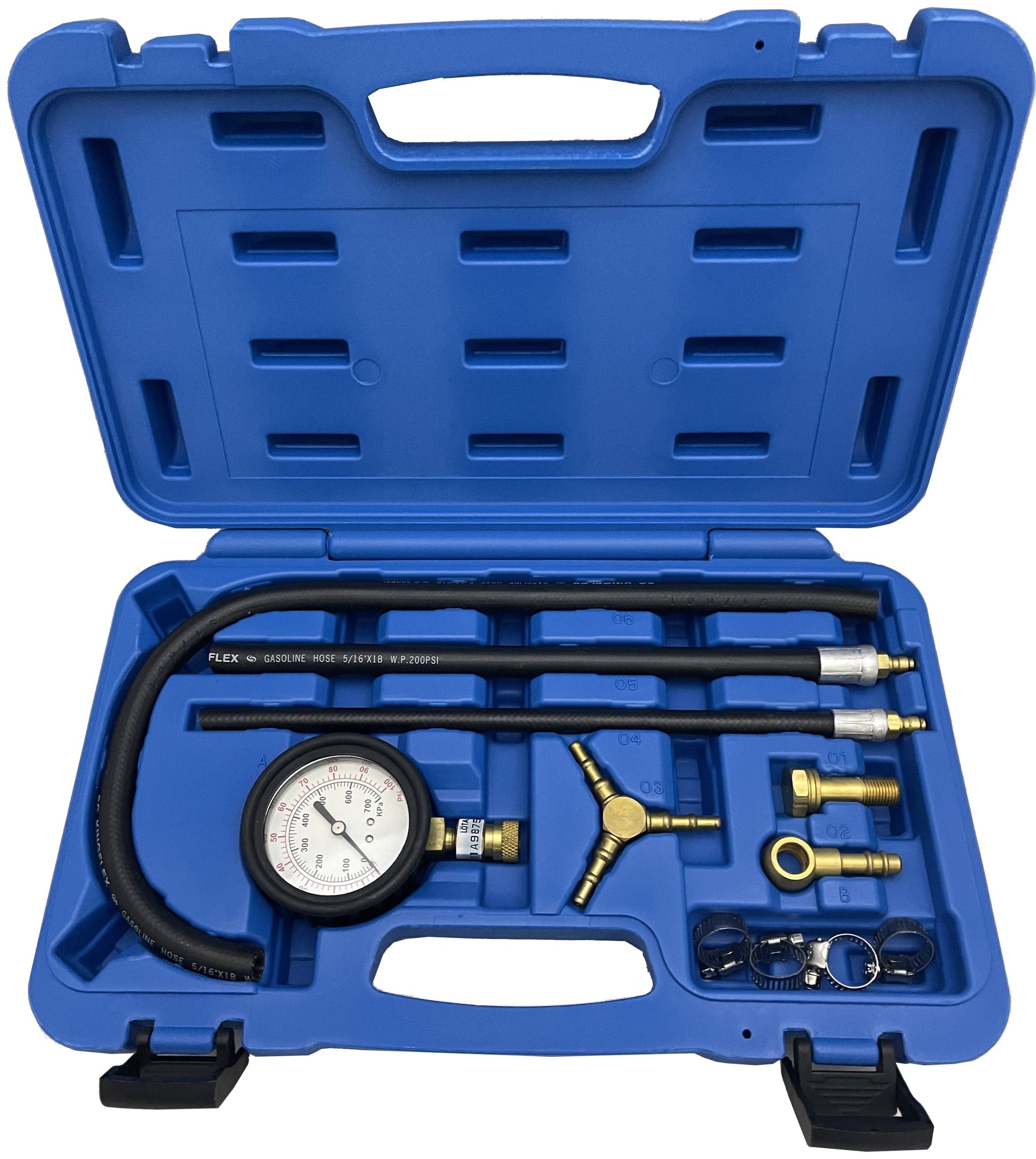

1987533

This product can measure the fuel oil pressure of engine (automobile) with a fuel injection device, and determine whether the fuel system is in sound condition.

This product is specially designed for measuring the fuel oil pressure of the fuel pumps

for Toyota and Nissan electronic injection devices.
