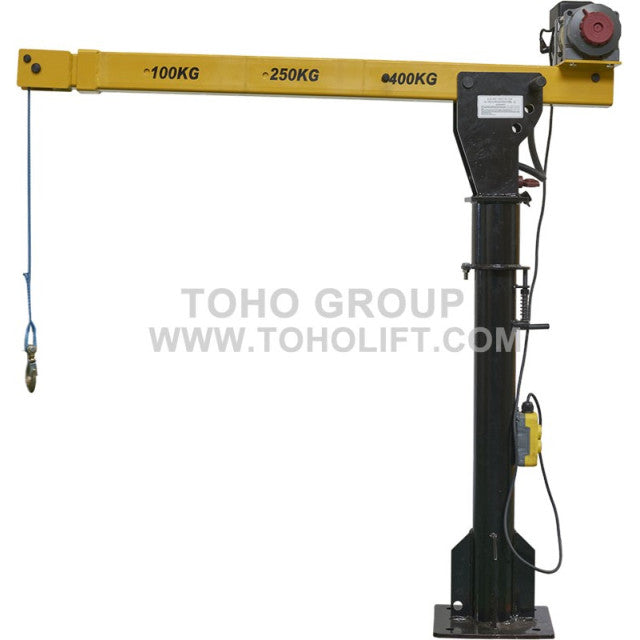

TOHO Pick Up Crane, Steel Wire Rope Type PCR
TOHO Pick Up Crane, Steel Wire Rope Type PCR
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Unit price
/
per
Portable Crane PCR – Feature & Advantages
Features & Advantages:
✔ Extensional Jib – Adjustable reach with three lifting capacity options.
✔ 360° Rotation with Brake – Provides full movement and precise positioning.
✔ Foldable Design – Easy to transport and store when not in use.
✔ Quick Plug & Bolt Connection – Ensures fast and hassle-free installation.
Technical Specifications:
| MODEL | PCR |
|---|---|
| Lifting Capacity (Maximum) | 882 Lb. (400Kg) |
| Lifting Height Max. Std. (Base to Hook) | 2000mm |
| Reach Max. (From Center of Rotation) | 1470mm |
| Rotation (Continuous) with Brake | 360° Manual |
| Lifting Belt | 25mm x 1.5mm x 5.5m |
| Line Speed with No Load | 3.6m/min (0.06m/s) |
| Power Requirements | 12V DC, 120 amps |
| Feed Cable | 5m |
| Mounting Base | 250x250x10mm |
| Mounting Bolt Hole Pattern | 180x180mm |
| Finish | Powder Coated |
| Net Weight of Crane | 125.7 lbs (57Kg) |
