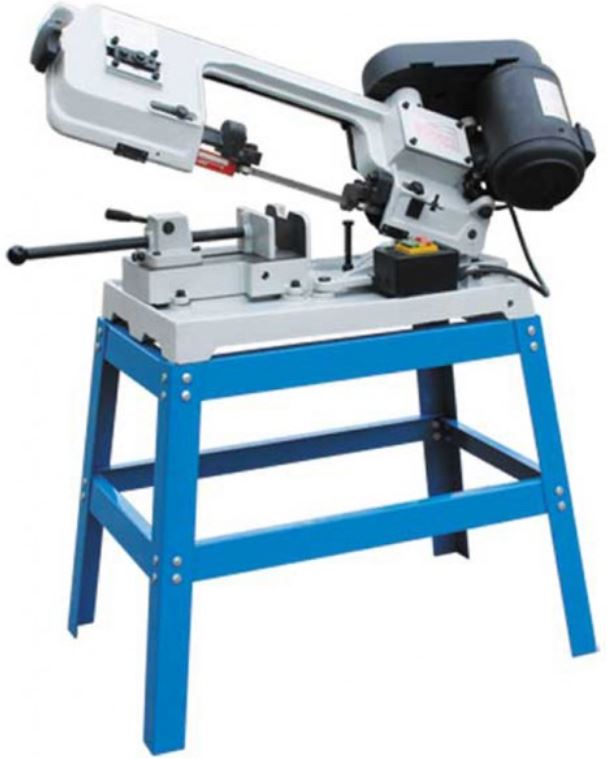

TTMC Metal Cutting Bandsaw BS-115A
TTMC Metal Cutting Bandsaw BS-115A
Regular price
₱41,000.00 PHP
Regular price
Sale price
₱41,000.00 PHP
Unit price
/
per
BS-115A Band Saw Machine – Features & Specifications
Features:
✅ Max Cutting Capacity: 115mm (4.5”) round bar
✅ Belt Drive System: Offers 3 adjustable cutting speeds
✅ Miter Cutting: Saw bow can miter from 0° to 45° for angled cuts
✅ Vertical Cutting Capability
✅ Rapid Vice Clamp: Ensures secure material holding
✅ Motor Options: Available in both 3-Phase and 1-Phase
Specifications:
Item No. | 388003 |
---|---|
Model | BS-115A |
Cut Circular @ 90° | 115mm (4.5”) |
Cut Rectangular @ 90° | 100x150mm (4”x6”) |
Cut Circular @ 45° | 100mm (4”) |
Cut Rectangular @ 45° | 60x100mm (2.4”x4”) |
Blade Speed @ 60Hz | 24, 35, 61 MPM |
Blade Speed @ 50Hz | 20, 29, 50 MPM |
Blade Size | 13 x 0.6 x 1638mm |
Motor Power | 375W (1/2HP, 3PH) / 550W (3/4HP, 1PH) |
Drive System | V-belt |
Packing Size | 101 x 48 x 56cm |
Net Weight / Gross Weight | 78kg / 96kg |
