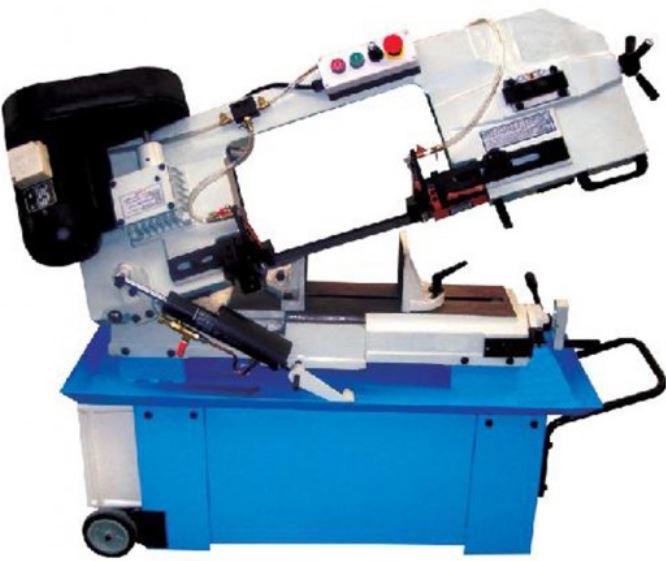

TTMC Metal Cutting Bandsaw BS-912B
TTMC Metal Cutting Bandsaw BS-912B
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Unit price
/
per
BS-912B Band Saw Machine – Features & Specifications
Features:
✅ Cutting Capacity: Max 9” round at 90°
✅ Swivel Clamp Vice: Adjustable up to 45° for angle cutting
✅ Hydraulic Descent Control: Ensures smooth and controlled cutting
✅ Portable Design: Equipped with wheels for easy movement
✅ Coolant System: Extends blade lifespan and enhances cutting performance
✅ Belt Drive System: Offers 4 adjustable cutting speeds
Specifications:
| Item No. | 388010 |
|---|---|
| Model | BS-912B |
| Cut Circular @ 90° | 229mm (9”) |
| Cut Rectangular @ 90° | 178x305mm (7”x12”) |
| Cut Circular @ 45° | 150mm (6”) |
| Cut Rectangular @ 45° | 127x150mm (5”x6”) |
| Blade Speed @ 60Hz | 32, 60, 88, 115 MPM |
| Blade Speed @ 50Hz | 26, 50, 73, 95 MPM |
| Blade Size | 27 x 0.9 x 2655mm |
| Motor Power | 1.1KW (1.5HP, 3PH) / 1.1KW (1.5HP, 1PH) |
| Drive System | V-belt |
| Packing Size | 154 x 59 x 115cm |
| Net Weight / Gross Weight | 190kg / 252kg |
Standard Accessories:
✔ Saw Blade
✔ Coolant System
✔ Stop Rod
made in China
