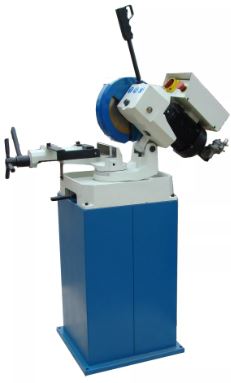

CS-250 Cold Saw – Precision Cutting for Metalworking
Features:
✅ High-Quality Blade: Includes a 250mm (9.8") HSS saw blade for precise, clean cuts ✅ Swivel Head for Versatility: 45° swivel gear head in both directions with a quick-lock mechanism ✅ Quick Action Vice Clamp: Enhances efficiency and production speed ✅ Operator Safety: Trigger switch for secure on/off power control ✅ Spring-Assisted Head Return: Reduces operator fatigue
Specifications:
Model
CS-250
Max Blade Size
250mm (9.8")
Cut Capacity @90° (Circular)
60mm (2.36")
Cut Capacity @90° (Rectangular)
75x45mm (3" x 1.77")
Cut Capacity @45° (Circular)
55mm (2.16")
Cut Capacity @45° (Rectangular)
55x45mm (2.16" x 1.77")
Blade Speed (50Hz)
42 rpm
Vice Opening
100mm (4")
Motor Power
1.1 kW (1.5HP)
Drive System
Gear
Packing Size (Body)
86x58x77cm
Packing Size (Stand)
78x47x33cm
N.W./G.W.
143/171 kg
Standard Accessories:
✔ Saw Blade ✔ Coolant System ✔ Stop Rod ✔ Stand
This high-performance cold saw is ideal for precision metal cutting in fabrication shops and manufacturing environments.
