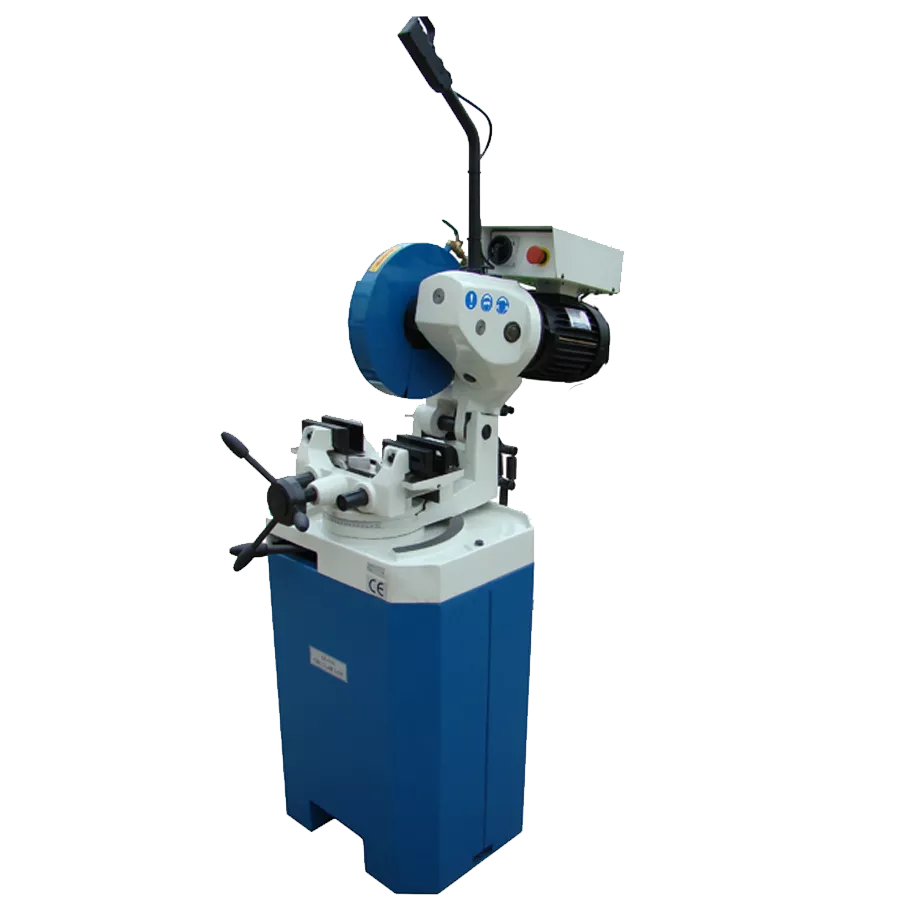

CS-315 Cold Saw – Precision Cutting for Heavy-Duty Applications
Features:
✅ Large 315mm Saw Blade – Ensures clean and precise cuts ✅ Heavy-Duty Cast Iron Gearbox – Direct gear drive for durability and efficiency ✅ Dual Swivel Head (±45°) – Quick-lock handle for easy angle adjustments ✅ Dual Cutting Speed (3-Phase Models Only) – Versatility for different materials ✅ Automatic Blade Guard – Enhances safety by covering the blade upon return
Specifications:
Model
CS-315
Max Blade Size
315mm (12.4")
Cut Capacity @90° (Circular)
100mm (4")
Cut Capacity @90° (Rectangular)
140x90mm (5.5" x 3.5")
Cut Capacity @45° (Circular)
90mm (3.5")
Cut Capacity @45° (Rectangular)
100x90mm (4" x 3")
Blade Speed (50Hz)
18, 36 rpm (Single-phase models have single speed)
Vice Opening
145mm (5.7")
Motor Power
750W 1HP / 1.3kW 1.7HP (3PH) or 1.1kW 1.5HP (1PH)
Drive System
Gear
Packing Size (Body)
98x62x93cm
Packing Size (Stand)
78x60x50cm
N.W./G.W.
227/261 kg
Standard Accessories:
✔ Saw Blade ✔ Coolant System ✔ Heavy-Duty Stand
Ideal for industrial metal cutting applications, the CS-315 Cold Saw provides high precision, reliability, and safety in fabrication shops and manufacturing facilities.
